5G four-card aggregation router

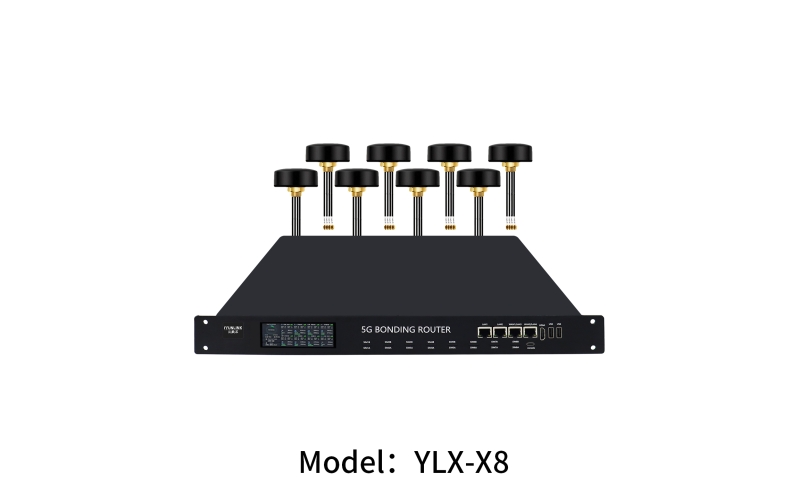

Model: YLX-X8
In 2016, Yunlianxin successfully developed multi-card multi-chain aggregation network technology, which not only created a new architecture for 4G/5G multi-network multi-card multi-link transmission, but also filled the gap in the field of weak network aggregation image transmission technology in China, becoming an important part of the industrial chain and the core technology application of basic communication.As a pioneer manufacturer in this field in China, Yunlianxin leads the development of multi-card router software and hardware aggregation transmission equipment and services.
YLX-X8 multi-link aggregation router is an Internet of Things wireless router product integrating advanced technologies such as 5G (backward compatible 4G/3G) network and virtual private network.The device supports 5G, WiFi6 (AX3000bps), wired network and other access modes, and adopts multi-network multi-link bandwidth superposition technology to realize bandwidth aggregation of multiple Internet links.At the same time, it supports the insertion of SIM cards from 8 different operators, which can still meet the user's demand for large bandwidth Internet access under the blind area of single operator network.
YLX-X8 has the advantages of large bandwidth, high stability and low latency, and the network port rate can reach up to 2.5Gbps, which significantly improves the reliability and stability of data transmission.Its industrial-grade hardware design enables the device to operate stably in a wide temperature range from-40 to 75 degrees Celsius, and is equipped with a watchdog software and hardware dual protection mechanism.
At present, the equipment has been widely used in online live broadcast, large-scale performance, multi-person video conference, on-site emergency command communication, on-site rescue network communication, high-speed rail transportation data transmission, and other professional industry fields.
product model | the name | Network band support | theoretical maximum transmission rate | |
YLX-X8-UCN | domestic version (5G Standard Version) | 5G SA& NSA:N41/N78/N79 5G NR:N1/N28/N41/N78/N79 LTE-FDD:B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 | 5G/4G/3G | NR SA：1.9Gbps(DL)/750Mbps(UL)
NR ENDC:2Gbps(DL)/340Mbps(UL)
LTE:500Mbps（DL）/150Mbps（UL)
WCDMA:42Mbps（DL）/11Mbps
The above data are theoretical values only, the actual network speed is limited by the local network environment
|
YLX-X8-QCN | domestic version (5G Qualcomm version) | 5G SA&NSA: N1/N28/N41/N78/N79 LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 WCDMA: B1/B8 | 5G/4G/3G | |
YLX-X8-QGL | overseas version (5G Global Edition) | 5G NR SA&NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 LAA: B46 WCDMA: B1/B2/B3/B4/B5/B8/B19 | 5G/4G/3G | |
Support customization More configurations | ||||
hardware architecture | ||
CPU | Oct-core CPU 3.8G main frequency | |
memory | LPDDR5 16GB | |
EMMC | 32GB | |
SSD hard drive | 128GB | |
Nor FLASH | 128 Mb | |
5G module | 8 5G modules | |
network type | 5G full Netcom (backward compatible with 4G/3G/2G) | |
positioning system | GPS/Beidou positioning | |
WiFi protocol | IEEE 802.11b/g/n/ac/ax (2.4G/5.8G dual band wifi6 AX3000Mbps) | |
operating system | Linux kernel version 5.4 | |
device interface | ||
power switch button | 1 (flat blue ring light) | |
power input terminal | 1 pin interface (AC 90-220V input supported) | |
SIM card interface | 8 Nano SIM sockets,(SIM/UIM supporting 1.8V/3V) | |
Ethernet interface
| 2 x 2.5G LAN ports | |
Two 2.5G WAN ports | ||
5G module | Built-in 4 5G/4G modules (adapted according to different configurations) | |
Ethernet interface
| WAN port | 1 (10M/100M/1000M adaptive MDI/MDIX port) |
LAN port | 3 (10M/100M/1000M adaptive MDI/MDIX ports) | |
antenna interface
| 5G antenna | 32 (4G/5G antenna, impedance 50 ohms, SMA header pin interface) |
WiFi antenna | 3 pcs (2.4G+5.8G combined WIFI antenna, impedance 50 Ω, SMA inner pin interface) | |
GPS antenna | 1 (optional) | |
Reset | 1 (reset button) | |
USB interface | of 2 | |
HDMI interface | of 1 | |
Console port | 1 Type_C interface (debug) | |
LCD screen | 1 x 5 inch resolution 720p | |
physical property | ||
mains electricity | 90-220V | |
Product power consumption | 60Watts | |
operating temperature | -40 to 80 °C (storage temperature-40 to +85 C) | |
operating humidity | 5%~95%(no condensation) | |
equipment ventilation | Built-in fan cooling | |
Outline size | [Front Panel] Width * Height * Thickness =483*44*2.5mm [Box] Width * height * depth =430*42*217.5/297.5mm | |
product weight
| Net weight: 3kg | |
Gross Weight: 5KG | ||
installation method | 1U rack flat | |
level of protection | IP30 | |
MTBF | ≥100,000 hours | |
authentication | CCC, CE, RoHS compliant | |
after-sales maintenance | ||
hardware warranty | 3 years (more than 1 year to provide paid maintenance, artificial damage and force majeure factors excluded) | |
software upgrading | Provide unlimited new software upgrades | |
